Automatic pallet wrapper with ramp

Automatic pallet wrapper with ramp

Automatic pallet wrapper with ramp
pallet wrapper

pallet wrapper

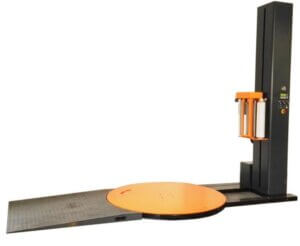

T1650F automatic pallet wrapper with ramp T1650F pallet wrapper is our brand new entry level premium machine. Despite the low price the operator has full control over how many wraps are applied to the top and bottom of the pallet giving you full control over how much film you apply to the pallet something you would associate with machines costing much more.

Excellent build quality, durability and user friendly. The T1650F pallet wrapper is set to become one of our biggest selling machines.Product Paramenters

Model T1650F
Turntable diameter 1650mm(can customize 1800/2000/2200/2400/2800/3000mm)
Max.wrapping height 1800mm(can customize 2000/2200/2400/2600/2800/3000mm)
Max.Loading 2000kgs
With Ramp optional
Voltage 220V 50Hz 1P
Machine size L2650*W1650*2400mm
Machine weight 700kg
H.S 84224000
Operate panel Text screen(english languages)
Film carriage Pre-stretch system up to 250%-350%
Max Pre-stretch 350% Adjustable tension with quick release Independent PLC Inverter Control
Frequency conversion motor has less abrasion and stable packaging Laminated film-type film release device has a beautiful stretching certificate, which saves the amount of filmMembrane frame uses DC motor, good performance, cheaper maintenance, more energy saving and environmental protection.
More Secure Design
Photoelectric induction design ensures automation, and the limit block provides double insurance for the mold stop Simple and clear text screen intelligent designOperation display : Interface for manual and auto, Settings, cycle &time chose as you need
