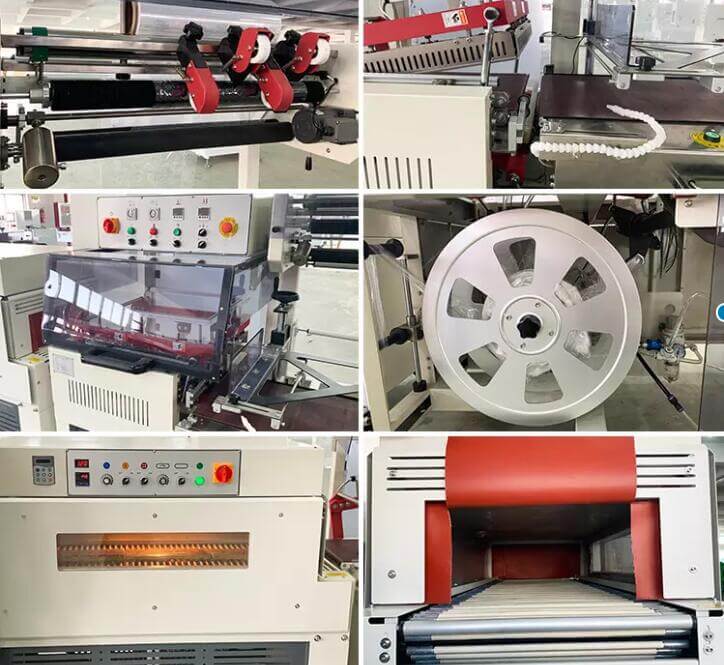

L bar thermo shrink packing machine

L bar thermo shrink packing machine

L bar thermo shrink packing machine
MODEL  RL-400
 Sealing Type  L-Sealing
 Installed Power  380V/50-60HZ/3Phase
 Packing Capacity  Max. 35 packs per minute (depends on product size)
 Sealing Height  125MM
 Packing Width  350MM
 Conveyor Speed  Variable, 26M/Min
 Film Thickness  12-30 Micron (Minimum-Maximum)
 Packing Size  Width + Height < 400mm, Length + Height < 480mm
 Film Type  Center Folded POF/ PVC Film
 Max Film Roll Size  530MM (Width) X 280MM (Outer Diameter)
 Power Consumption  1.5 KW
 Working Height  780-850 MM
 Air Pressure  0.5MPA (5 BAR)
MODEL  SHR-4020
 Power Supply  380V/50-60HZ/3Phase
 Oven Size  1200MM (L), Entrance 450(W) X 220(H) MM
 Conveyor Speed  Variable, 40 M/Min
 Conveyor  Chains with Rotating Silicon Coated Rods
 Rated Power   Consumption  Max. 7 KW
 Working Height  780 – 850 MM
 Machine Material  Carbon Steel
 Tunnel Machine   Dimensions  1550 X 700 X 1300 MM
 Weight (Net/ Gross)  490KGS/ 540KGS (For Reference Only, Including Sealer and Tunnel)
