Full sides reel wrapper

full side reel wrapper hose coil wrapping machine

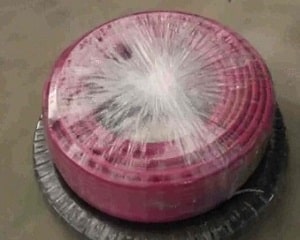

Special designed coil wrapping machine, horizontal wrapping structure with full sides wrapping from the coil external. Suitable for packaging coils, rolls and reels with very small inner diameter. The machine has top press roller to clamp light hose and pipe reels during the wrapping.

Features and characteristics:

  • Designed for wrapping reels of pipe and corrugated hose with light weights;
  • Suitable for using stretch film as the wrapping material for packaging;
  • Large orbital ring to wrap different reels with variant dimensions and heights;
  • Adopt well known brands of the components, extend the service life of the machine;
  • The orbital ring and supportive rollers are controlled by frequency converters, make the overlap ratio adjustable;
  • Guardrails are adopted to cover the moving parts on the machine for keeping the safety.

Technical parameter:

Max load:1-50kg
Coil ID:Unlimited
Coil OD:300-800mm
Coil height:80-300mm
Coiling speed:20-80rpm
Power supply:380V, 50Hz, 3Ph
